Omega Fire Sprinkler Air Compressors

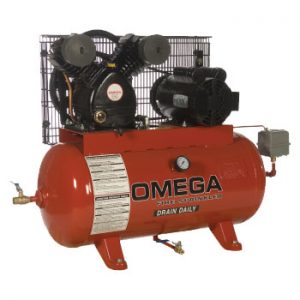

Fire Sprinkler – Tank Mounted Simplex Series
(1/2 HP to 5 HP Single Stage Compressors)
- Quiet Operation.
- Heavy Duty single stage high efficient air compressors.
- Durable cast iron pumps for performance and durability.
- Splash type lubrication.
- All cast iron pumps have stainless steel valves for longer life
- Flywheels designed for excellent pump cooling.
- All units factory set at 30 – 50 psi.
- All units are factory tested prior to shipment.
| MODEL NUMBER | FS-0520 | FS-07520 | FS-0120 | FS-01520 | FS-0220 |
| HP | 1/2 | 3/4 | 1 | 1.5 | 2 |
| MOTOR RPM | 1725 | 1725 | 1725 | 1725 | 1725 |
| CFM DEL. (FAD-35 PSI) | 3.1 | 4.5 | 6.0 | 7.7 | 10.5 |
| SYSTEM SIZE (Maximum Gals. In system to be pumped to 35 psi in 30 minutes) | 290 | 425 | 550 | 725 | 985 |
| MAX PSI | 125 | 125 | 125 | 125 | 125 |
| TANK SIZE | 20H | 20 H | 20 H | 20H | 20 H |
| PUMP | PK-50 | PK-50 | PK-50 | PK-60 | PK-60 |
| PUMP RPM | 485 | 565 | 970 | 780 | 1040 |
| # OF CYLINDERS | 2 | 2 | 2 | 2 | 2 |
| STAGE(S) | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| MAG. STARTER REQ’D | YES | YES | YES | YES | YES |
| NOISE LEVEL (dba) | 75 | 75 | 75 | 78 | 78 |
| WEIGHT (LBS.) | 176 | 181 | 194 | 201 | 203 |
Fire Sprinkler – Base Mounted Simplex Series
(1/2 HP to 5 HP Single Stage Compressors)
- Quiet Operation.
- Heavy Duty single stage high efficient air compressors.
- Durable cast iron pumps for performance and durability.
- Splash type lubrication.
- All cast iron pumps have stainless steel valves for longer life.
- Flywheels designed for excellent pump cooling.
- All units factory set at 30 – 50 psi.
- Pressure Switch, safety valve, gauge, check valve, after cooler tube and manifold are NOT INCLUDED.
- All units are factory tested prior to shipment.
| MODEL NUMBER | FS-0500 | FS-07500 | FS-0100 | FS-01500 | FS-0200 |
| HP | 1/2 | 3/4 | 1 | 1.5 | 2 |
| MOTOR RPM | 1725 | 1725 | 1725 | 1725 | 1725 |
| CFM DEL. (FAD-35 PSI) | 3.1 | 4.5 | 6.0 | 7.7 | 10.5 |
| SYSTEM SIZE (Maximum Gals. In system to be pumped to 35 psi in 30 minutes) | 290 | 425 | 550 | 725 | 985 |
| MAX PSI | 125 | 125 | 125 | 125 | 125 |
| TANK SIZE | N/A | N/A | N/A | N/A | N/A |
| PUMP | PK-50 | PK-50 | PK-50 | PK-60 | PK-60 |
| PUMP RPM | 485 | 565 | 970 | 780 | 1040 |
| # OF CYLINDERS | 2 | 2 | 2 | 2 | 2 |
| STAGE(S) | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| MAG. STARTER REQ’D | YES | YES | YES | YES | YES |
| NOISE LEVEL (dba) | 75 | 75 | 75 | 78 | 78 |
| WEIGHT (LBS.) | 120 | 124 | 137 | 143 | 145 |
Fire Sprinkler – Base Mounted Simplex Series
(1/2 HP to 5 HP Single Stage Compressors)
- Quiet Operation.
- Heavy Duty single stage high efficient air compressors.
- Durable cast iron pumps for performance and durability.
- Splash type lubrication.
- All cast iron pumps have stainless steel valves for longer life.
- Flywheels designed for excellent pump cooling.
- All units factory set at 30 – 50 psi.
- Pressure Switch, safety valve, gauge, check valve, after cooler tube and manifold are NOT INCLUDED.
- All units are factory tested prior to shipment.

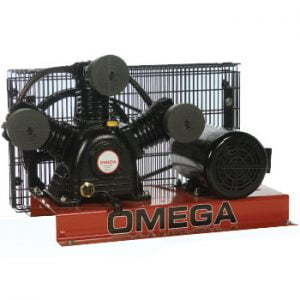

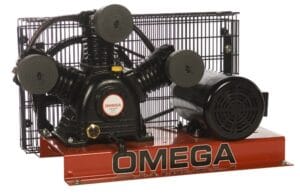

| MODEL NUMBER | FS-0300 | FS-5000 |
| HP | 3 | 5 |
| MOTOR RPM | 3450 | 3450 |
| CFM DEL. (FAD-35PS1) | 15.3 | 25.5 |
| SYSTEM SIZE (Max. Gals. In system to be pumped to 35psi in 30mins.) | 1440 | 2400 |
| MAX PSI | 125 | 125 |
| TANK SIZE | N/A | N/A |
| PUMP | CK-40 | CK-40 |
| PUMP RPM | 843 | 1200 |
| # OF CYLINDERS | 3 | 3 |
| STAGE(S) | SINGLE | SINGLE |
| MAG. STARTERS REQ’D | YES | YES |
| NOISE LEVEL (dba) | 80 | 80 |
| WEIGHT (LBS.) | 158 | 168 |
