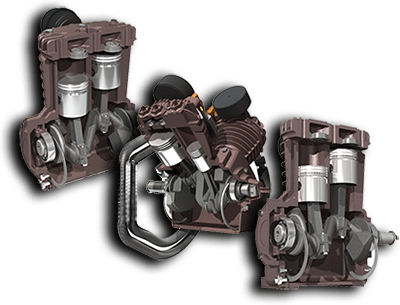

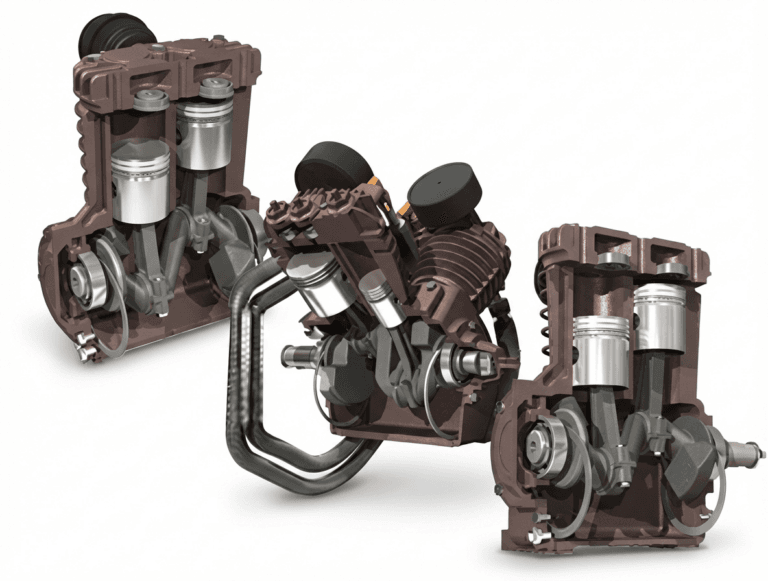

Compressor Pumps
MPS offers a large selection of new, rebuilt and reconditioned compressor pumps ranging from 1/2 H.P to 30 H.P. We offer Devilbiss replacement pumps available from stock and sold on an exchange program.
The following models are in stock and ready for exchange.
DV Systems Quick Reference Chart
| Pump Model | Ring Kit | Gasket Kit | Valve Kit | H.P Intake |
|---|---|---|---|---|
| 120 | KK-9833 | 45875-001 | VK-120 | 120-417-2 |
| 123 | KK-9848(2) | GK-9405 | VK-123 | 123-417 |
| 220 | KK-9833(2) | 45875-004 | VK-120(2) | 120-417-2 |
| 223 | KK-9848(2) | GK-9406 | VK-123(2) | 123-417 |
| 236 | RK-9400 | GK-9402 | VRK-236 | VRK-236 |
| 240 | RK-9400 | GK-9400 | VRK-642 | 432-4217 |
| 44633 | KK-9848 | 45875-026 | VK-633 | 44185-027 |
| 247 | KK-9805 | GK-9404 | VRK-247 | 445-4217(2) |
| 44642 | KK-9824 | 45875-014 | VRK-642 | 432-4217 |
| 44643 | KK-9805 | 45875-010 | VRK-643 | 445-4217 |
| 432 | KK-9824(2) | 45875-010 | VRK-642 | 432-4217(2) |
| 440 | RK-9400(2) | GK-9401 | VRK-642 | 432-4217(2) |
| 445 | KK-9805(2) | 45875-011 | VRK-643 | 445-4217 |
| 447 | KK-9805(2) | GK-9403 | VRK-247 | 445-4217(4) |
| Pump Model | H.P Exhaust | Low Pres. Intake | Low Pres. Exhaust | Conn. Rod Bearing | Air Filter |
|---|---|---|---|---|---|
| 120 | 120-4405 | N/A | N/A | N/A | 350-9401 |
| 123 | 123-405 | N/A | N/A | N/A | 356-9701 |
| 220 | 120-4405 | 120-417-2 | 120-4405 | N/A | 355-9702 |
| 223 | 123-405 | 123-417 | 123-405 | N/A | 356-9701 |
| 236 | VRK-236 | VRK-236 | VRK-236 | 432-474(2) | 357-9701 |
| 240 | 445-4205 | 445-4217 | 445-4205 | 432-474(2) | 357-9701 |
| 44633 | 44185-026 | 44185-027 | 44185-026 | N/A | 357-9701 |
| 247 | 445-4205(1) | 445-4217(1) | 445-4205(1) | 445-474(2) | 357-9701 |
| 44642 | 432-4205 | 445-4217 | 445-4205 | 432-474(2) | 357-9701 |
| 44643 | 445-4205 | 445-417-1 | 445-405-1 | 445-474(2) | 357-9401 |
| 432 | 432-4205(2) | 445-4217(2) | 445-4205(2) | 432-474(4) | 43631-009 |
| 440 | 432-4205(2) | 445-4217(2) | 445-4205(2) | 432-474(4) | 43631-009 |
| 445 | 445-4205(2) | 445-417-1(2) | 445-405-1(2) | 445-474(4) | 43631-010 |
| 447 | 445-4217(2) | 445-4217(2) | 445-4205(2) | 445-474(4) | 357-9701(2) |
